Speedwerx Exterminator Kit // 2023-2025 Polaris 850 Patriot Boost VR1 / Assault

Speedwerx Exterminator Kit for 2023-2025 Polaris 850 Patriot Boost VR1 / Assault

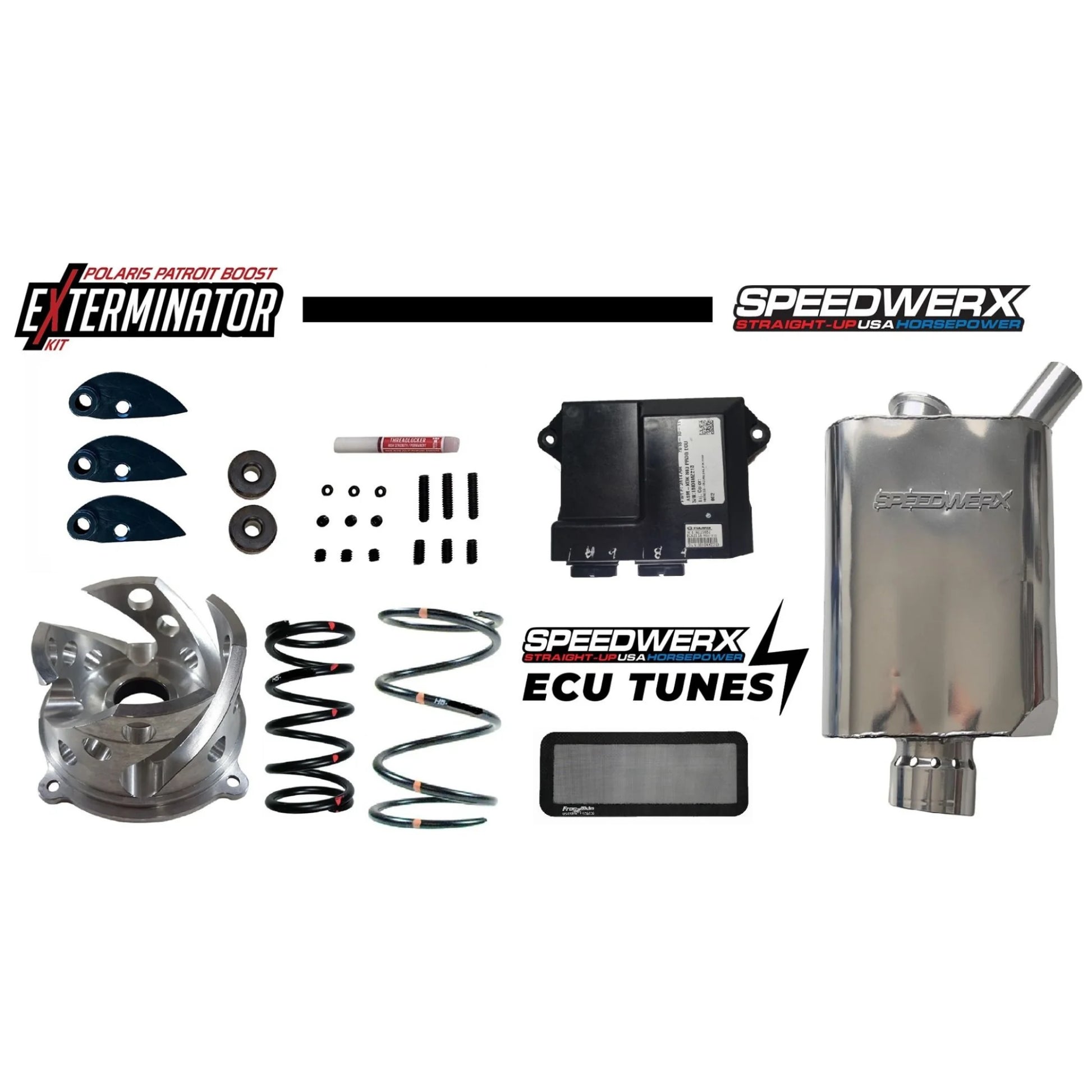

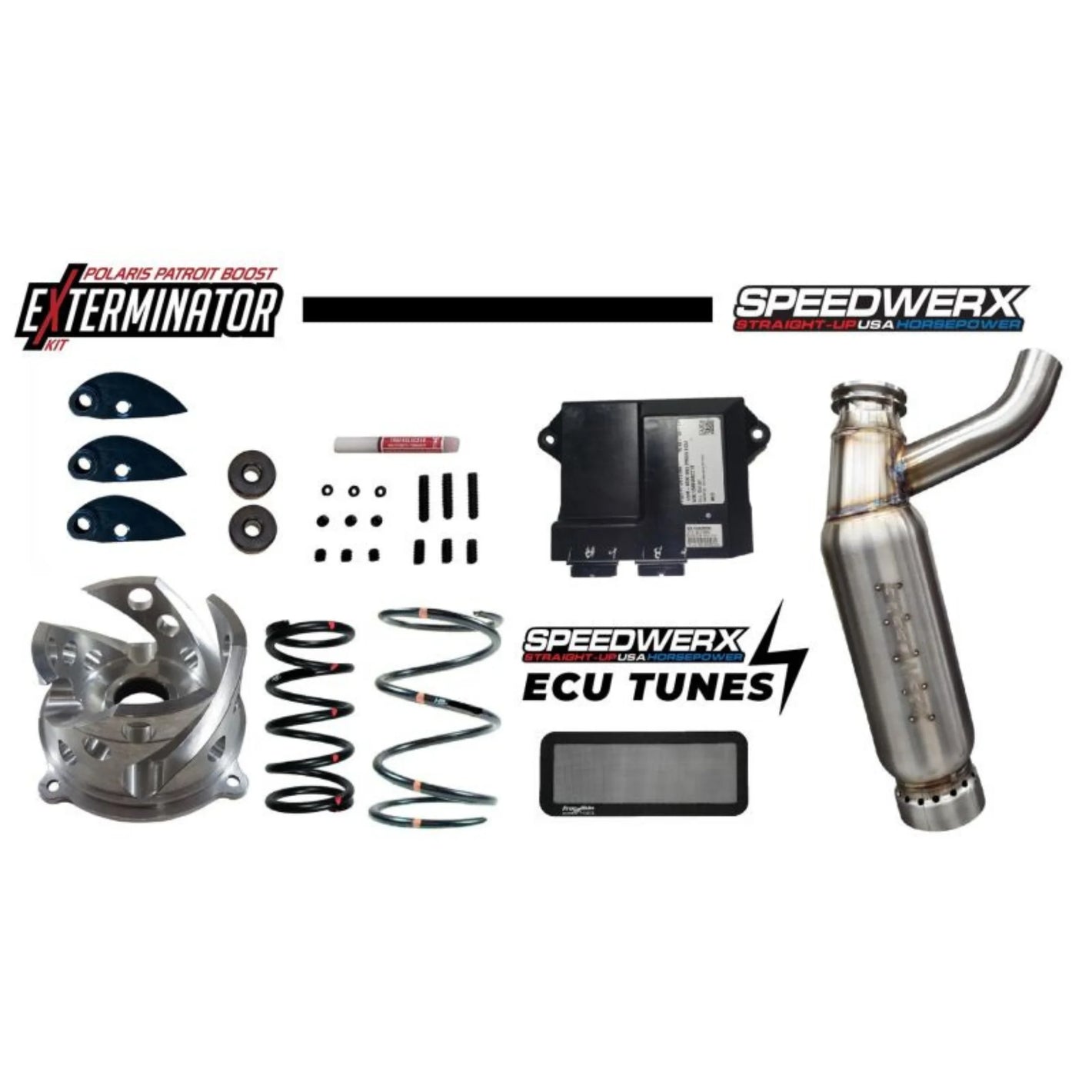

The Speedwerx Exterminator Kit for the Polaris 850 Patriot Boost VR1 / Assault combines our ECU Tune, choice of Lightweight Ceramic Coated or L2 Competition Series Lightweight Stainless Steel Mufflers, Hypershift Clutch Kit, High Flow Intake Vent, and Pipe Springs in one convenient package. Your choice of tunes will unlock maximum power and performance, the exhausts shed weight and sound great, and the clutching puts the added power to the ground. Our optional Panel Vent Kits help rid the extra heat more power and boost generates, and the EZ LYNK 3 offers diagnostics, data logging, and flashing capabilities.

• Speedwerx ECU Tune
• Standard Lightweight Ceramic Coated Muffler or L2 Competition Series Stainless Steel Muffler or Stock Muffler Mod

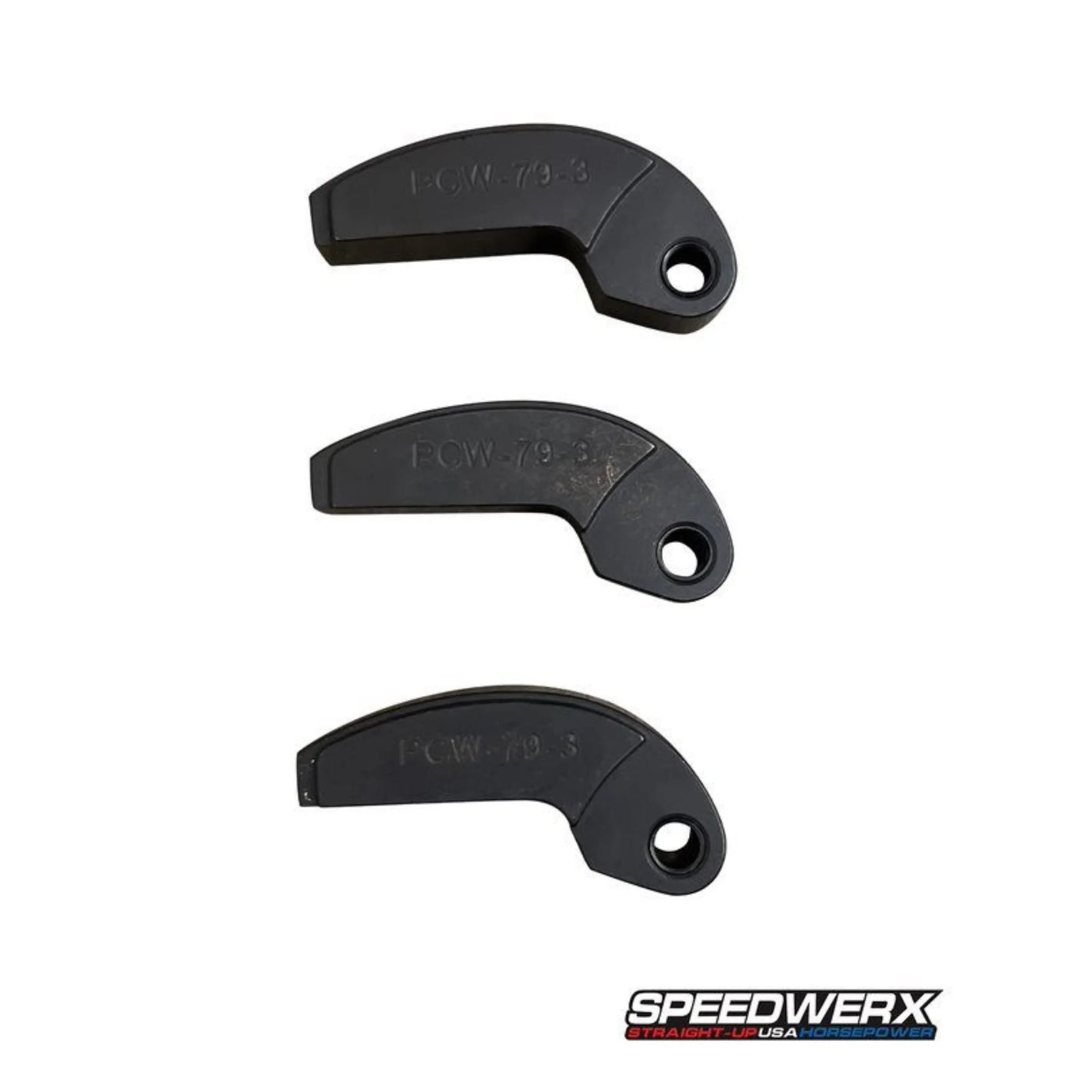

• Hypershift Clutch Kit
• High Flow Intake Vent
• Three additional Pipe Springs

Note: 2024-2025 models require factory 7s display software update after flashing, you can do this at home with a USB thumb drive- Link to Software Download

If flashing with the EZ LYNK, you can

unplug the hood harness before flashing and the update should not be needed.

Also, 2023 belt pn 3112325 is required with our clutch setup, updated clutching specs using 2024 belt 3212348 are coming pending field testing late January.



Update Feb 2024: Speedwerx Tunes and Mufflers Tested at DynoTech Research!

To see the full article from DTR  CLICK HERE

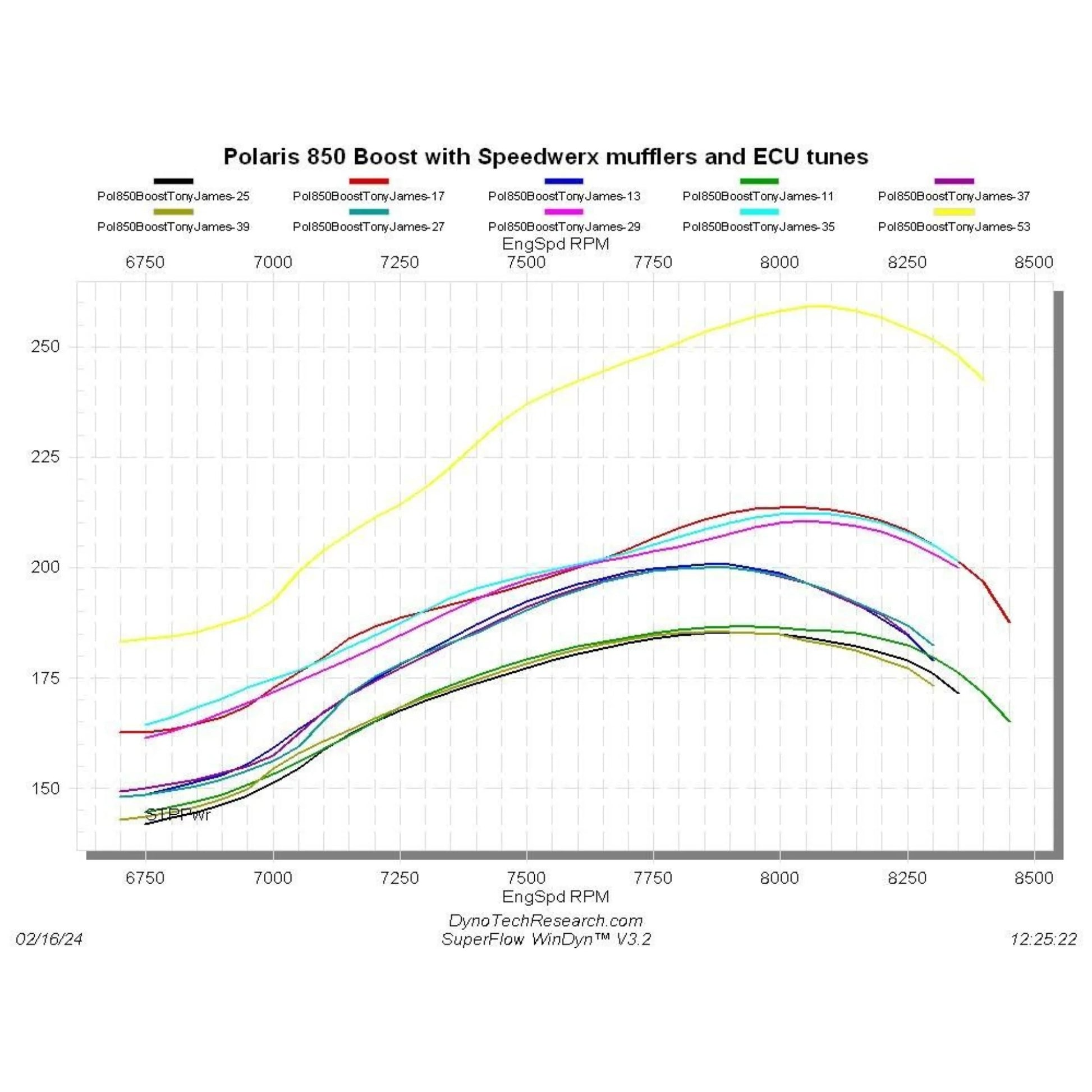

Boost VR1 Low Elevation Calibration Dyno Test

- Stock Tune:  185.2 hp with Stock Muffler Mod
- Stage 2 - 91 Non-Oxy Pump Gas ECU Tune:  200.1 hpwith Stock Muffler Mod / 200.0 hp with Std Lightweight Muffler
- Stage 2.5 - 91 Non-Oxy Pump Gas ECU Tune:  210.6 hp with Stock Muffler Mod / 212.4 hp with Std Lightweight Muffler / 213.6 hp with L2 Muffler
- Stage 4 - 110+ Octane Race Gas ECU Tune:  259.0 hp with L2 Muffler

Stock, Stage 2, Stage 2.5, and Stage 4 Tunes with Stock Muffler Mod (Black 25/Aqua 27/Pink 29) vs. Lightweight Muffler (Lt Green 39/Purple 37/Lt Blue 35) vs. L2 Muffler (Green 11/Dk Blue 13/Red 17/Yellow 53)



Product Updates Oct 2023:

2022-2023 PATRIOT BOOST NOTES AND SETUP INFORMATION

These machines are very sensitive to the overall set up and load from clutching and traction specifically. Mixing and matching parts from company to company is not advised and will more than likely lead to a poor running machine. 91 Non-Oxy Gas is must as the sled’s performance really suffers when running in Ethanol mode. Customers riding in California or other areas where 91 Octane Non-Oxy Gas is not available, we highly suggest adding some 100 LL AV Gas to your pump gas so you do not have to run in Ethanol mode.

As we have got more time on these machines, we are learning a lot more about them and what they like and do not like.

Available components and recommended combinations:

VR1 / Assault Boost:

Stage 1: Stock or Speedwerx Lightweight Muffler, and Hypershift Clutch Kit. Optional Intake Vent and Panel Vents also available.

Stage 2: Speedwerx Stage 2 - 91 Non-Oxy Pump Gas ECU Tune- 200.1 hp with Stock Muffler Mod / 200.0 hp with Std Lightweight Muffler, Stock or Speedwerx Lightweight Muffler, Hypershift Clutch Kit and High Flow Intake Vent. Optional Panel Vents also available.

Stage 2.5: Speedwerx Stage 2.5 - 91 Non-Oxy Pump Gas ECU Tune- 210.6 hp with Stock Muffler Mod / 212.4 hp with Std Lightweight Muffler / 213.6 hp with L2 Muffler, Stock or Speedwerx Lightweight Muffler,Hypershift Clutch Kit and High Flow Intake Vent. Optional Panel Vents also available.

Stage 3: Speedwerx 100 LL AV Gas ECU Tune.  Will not work with Stock muffler.

Stage 4: Speedwerx 110+ Octane Race Gas ECU Tune- 259.0 hp with L2 Muffler, currently seeing 108mph in 575' in Lake Race trim.  $ 999.95 or an additional $ 449.95 if you already bought Stage 2 / 2.5 or 3. Will not work with Stock muffler.

Stage 5: When you want to put the title on the line. VP C-14 Fuel required. $999.95. Will not work with Stock muffler.

3 Stage Dash Flash: Allows you to have 3 programs installed at one time and you can change maps on your dash. $449.95. Keep in mind with the EZ LYNK you can change maps at any time with your cell phone.



Mufflers: Our L2 and Standard Lightweight Mufflers are working great on all the available power levels. Stage 4/5 will only work with the Speedwerx mufflers, the L2 is what we suggest for these applications. We have seen issues with other mufflers on the market as they do not flow as good as the stock system, and they have a higher back pressure which throws the mapping and tuning off and makes the sleds more prone to having run-ability issues.

Stock Muffler Mod: We designed this Stock Muffler Mod to cope with the rules and regulations many of us are facing on the trail. This modification to the stock muffler increases the flow for the higher horsepower tunes, but keeps a stock external appearance with little change in the sound level. There is a very small gain on the stock tune but we are not really interested in that- performance tunes require a more freer flowing muffler and until now, all of those mufflers came with increased sound levels and a risk of fines in certain regions of the world. This muffler modification produces almost identical power numbers to our Standard Lightweight muffler or L2 Series muffler with our Stage 2 and 2.5 ECU tunes. The cost of the modification service is $189.95, or a modified muffler can be purchased outright for $1039.94 (OEM muffler is $849.99). We try to keep modified cores in stock and available for exchange to minimize the turn around time (subject to availability and demand).

Clutching:  We focused a lot on throttle response and acceleration with our setups. Our Hypershfit Clutch Kits are designed for everyday trail use, we like to run these at 8100-8300 rpm for these conditions.  When lake racing or drag racing we are finding best results at 8050-8150 but the are a lot more prone to throwing knock codes when pulled down harder. They are more fun to ride on the trail running at the 8100-8300 rpm range though for sure.

Venting: The High Flow Intake Vent POL850T-HFI really helps the intake get even more fresh air, which helps the machines run more consistent and lowers the intake temps slightly. This also helps in deep snow conditions when the stock intake vents plug off your machine still has a good source of intake air.  This helps prevent bogging and runability issues when this situation occurs. For Panel Vent kits there are 3 options for the Indy models. They help keep the temps down underhood, which leads to better performance, lower clutch and belt temps, and lower intake temps. See Related Products below for more details.

Pipe Springs:  For sure under higher boost settings, you need to double up the springs on the pipe to the y-pipe.  Even on models with a stock tune this will be a good upgrade- order quantity 3 of pn ATV-SS. Even with 1 PSI of extra boost we have seen the pipe push off the manifold and cause issues.

In the WERX:

• Head Kits These will be based off of a raw casting that will allow us to cut chambers to what we want or need and not be limited to recutting the stock heads.
• Intercooler We are working on a water to air intercooler kit similar to what we used on our Supercharger kits.  This will be huge for the mountain riding and high boost lake racing applications.
• 900 Kit There is replacement for displacement.



If you have any questions, please contact Speedwerx at 651-982-6020 or email tech@speedwerx.com.

---------------------------------------------------

You must send your ECU to us for programming! Please include a copy of your invoice or a note with your return address and order number. The return shipping cost for the service of your choice will be added when purchasing online.

Ship to:

Speedwerx, Inc.
20195 Greystone Avenue
Forest Lake, MN 55025



Sending us your ECU is always the easiest and preferred way to get it done, but for those that wish to purchase a tool to flash their own ECU, we are using the new industry leading EZ LYNK Auto Agent 3 system. This will not only allow you to flash your ECU but you can also do much more.

• Data Log live and record data to share with tuners or friends.
• Run diagnostics checks on your machine as well as several other powersports and over the road vehicles. (brand-specific cables required for other powersports machines)
• Reset power valves on Polaris 850 and 9r models.
• Flash your own ECU with optional ECU Flash Power-Up Adapter.
• Change Maps on the Trail or Mountain with the cell phone app.



Get Connected with The World's Most Powerful Vehicle Scan Tool. EZ LYNK puts your technician in the front seat whenever and wherever you choose and is the vehicle interface for all EZ LYNK apps.

The EZ LYNK Auto Agent 3 Vehicle Diagnostic Scan Tool and Electronic Logging Device (ELD)

Who is it for?

Vehicle Owners - From 18 Wheelers to Powersports and everything in between. See what we offer for your Vehicle

Vehicle Technicians - Get Connected with your customer and their vehicles; Whenever and Wherever

Transport Companies - Owner Operator, Small and Large Fleet Sizes and even Bus Transport Companies

Commercial Motor Vehicle Drivers - Hotshot, Short Haul, Long Haul, Agricultural and Construction



60 Second Setup:

Plug the device into the Vehicle's OBDII Diagnostic Connector

Install the EZ LYNK Mobile App on your Android or iOS Device

Connect via WiFi

Diagnostic Scan Tool and More:



A Connected OBD Scan Tool for You and your Vehicle's Technician

Lynk with your Technician

View and Record Vehicle Data Parameters in Real Time

Share Recorded Data Logs with your Technician

Read and Clear Diagnostic Trouble Codes (DTC)

Perform Technician Recommended Vehicle Functions

Install Vehicle Firmware Updates provided by your Technician, Over-the-Air

Chat with your connected Technician, within the Auto Agent Mobile App



Auto Agent 3 w/ OBDII Connection

Devices and Software Compatibility:

Android 8.0 or Later

iOS 12.0 or Later

iPad

iPhone

iPod touch



Additional Accessories to expand the Auto Agent 3 Connection and Convenience:

Class 8, Medium and Heavy Duty (Semi) vehicles - Auto Agent 3 HD Cables (6 and 9 Pin Round)

ATV, UTV, SnowMobile and WaterCraft applications - Auto Agent 3 Powersports Diagnostic Cables and ECU Flash Power-Up Adapters

EZ LYNK Phone Window or Dash Mount - The phone mount that sticks!

EZ LYNK ELD system requires a monthly subscription
