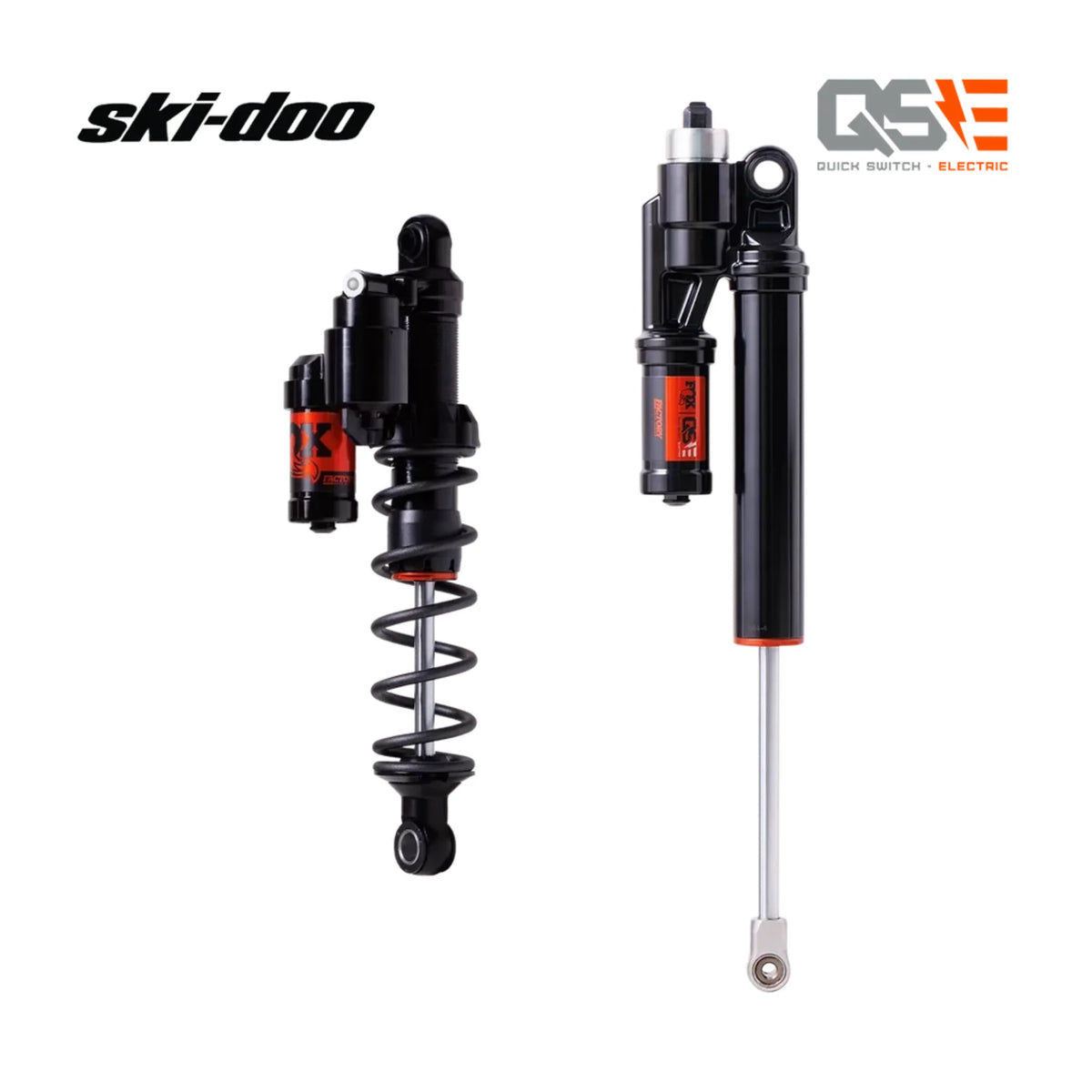

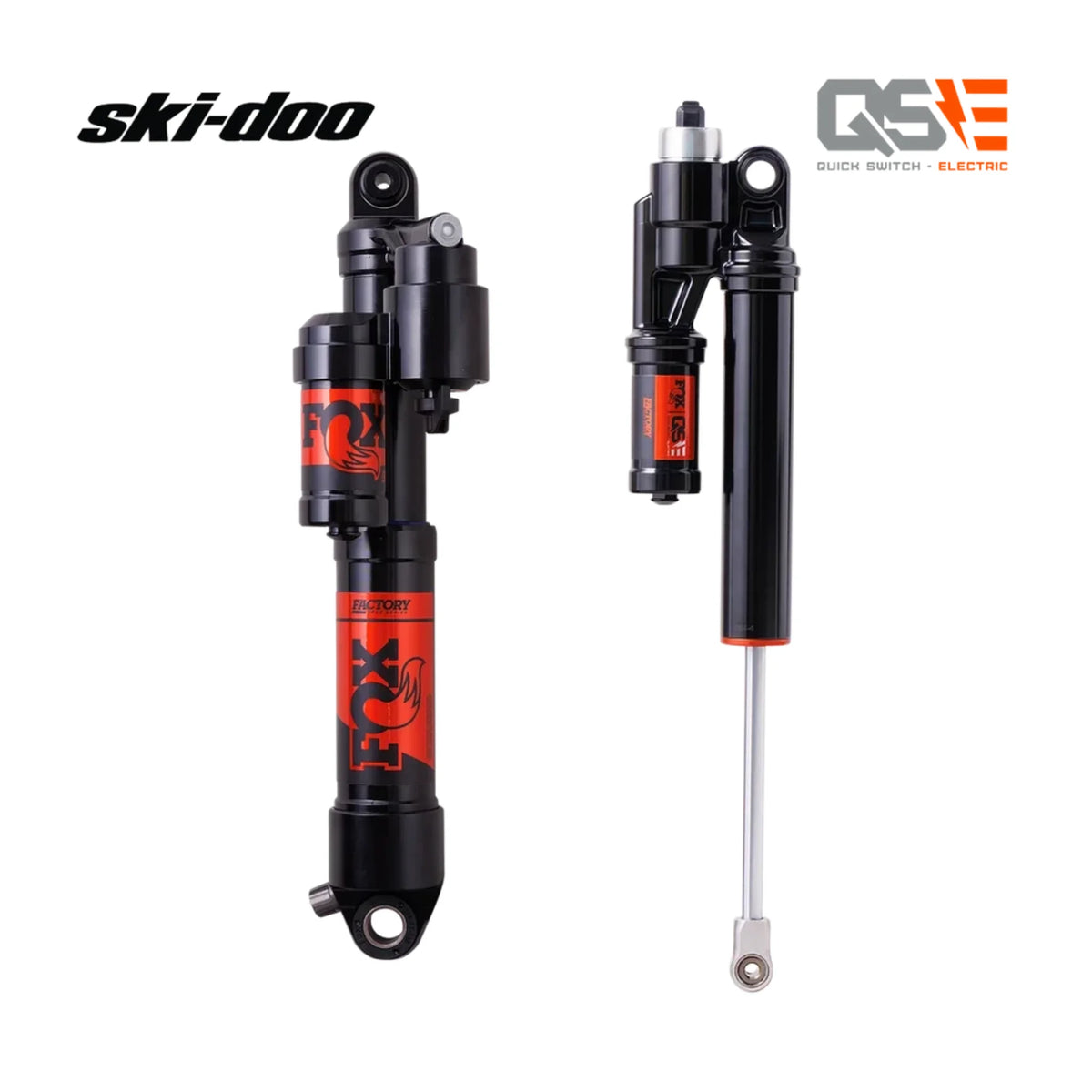

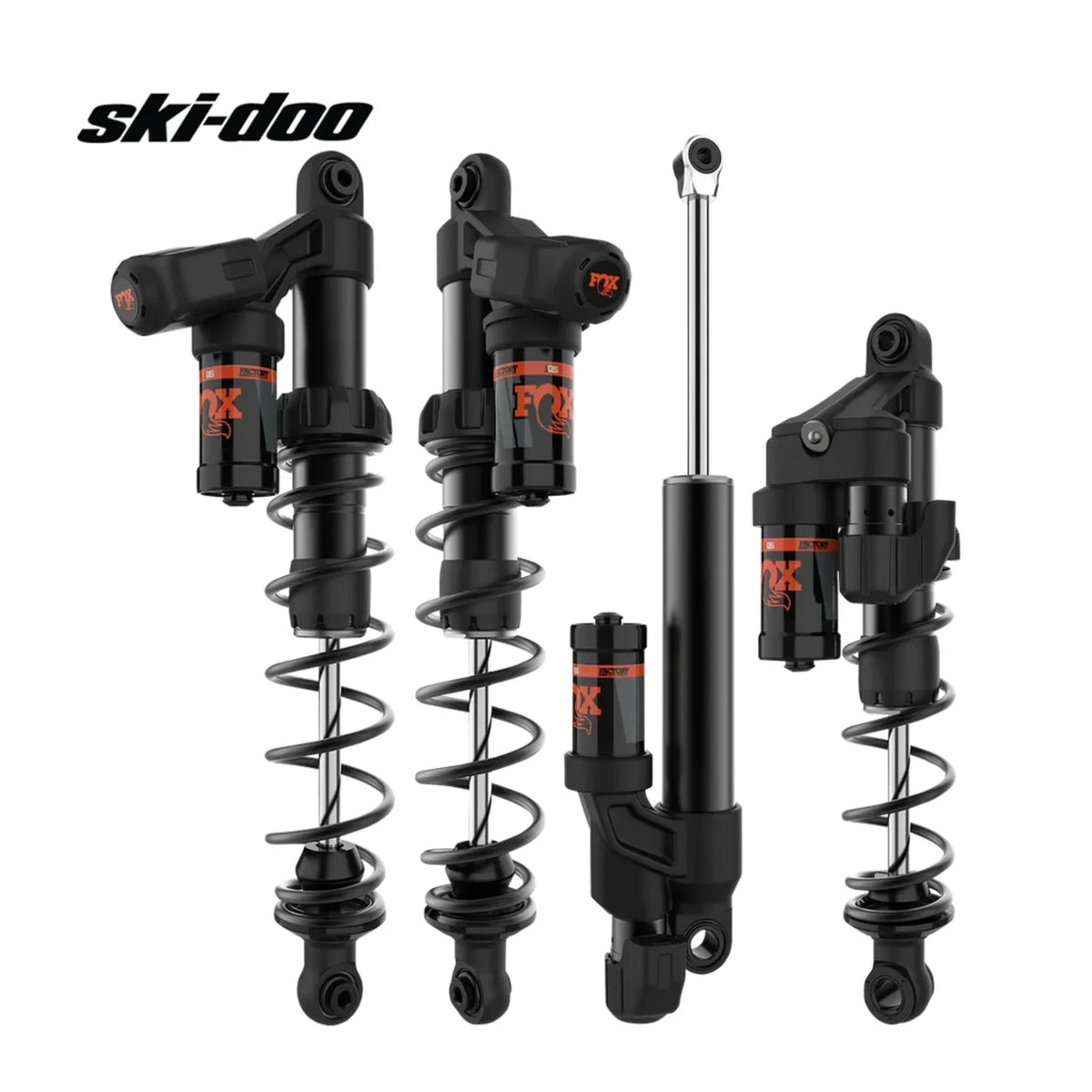

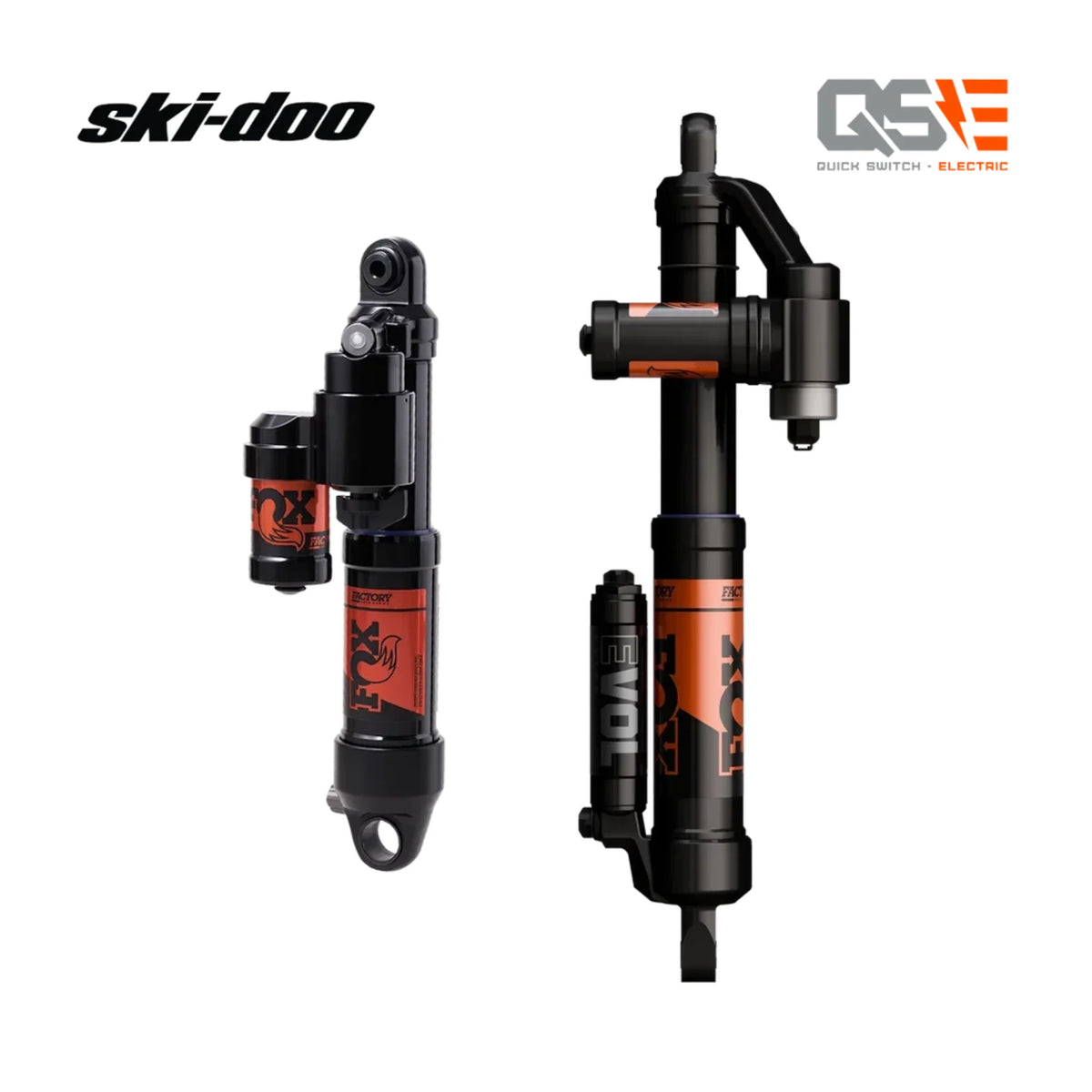

NEW FOX QSE Track Shock Kit (COIL & FLOAT): Ski-Doo Gen5 Summit & Freeride

The all new FOX QSE shock kits are the lightest, most advanced and highest performing shocks in their class.

TECHNOLOGY:

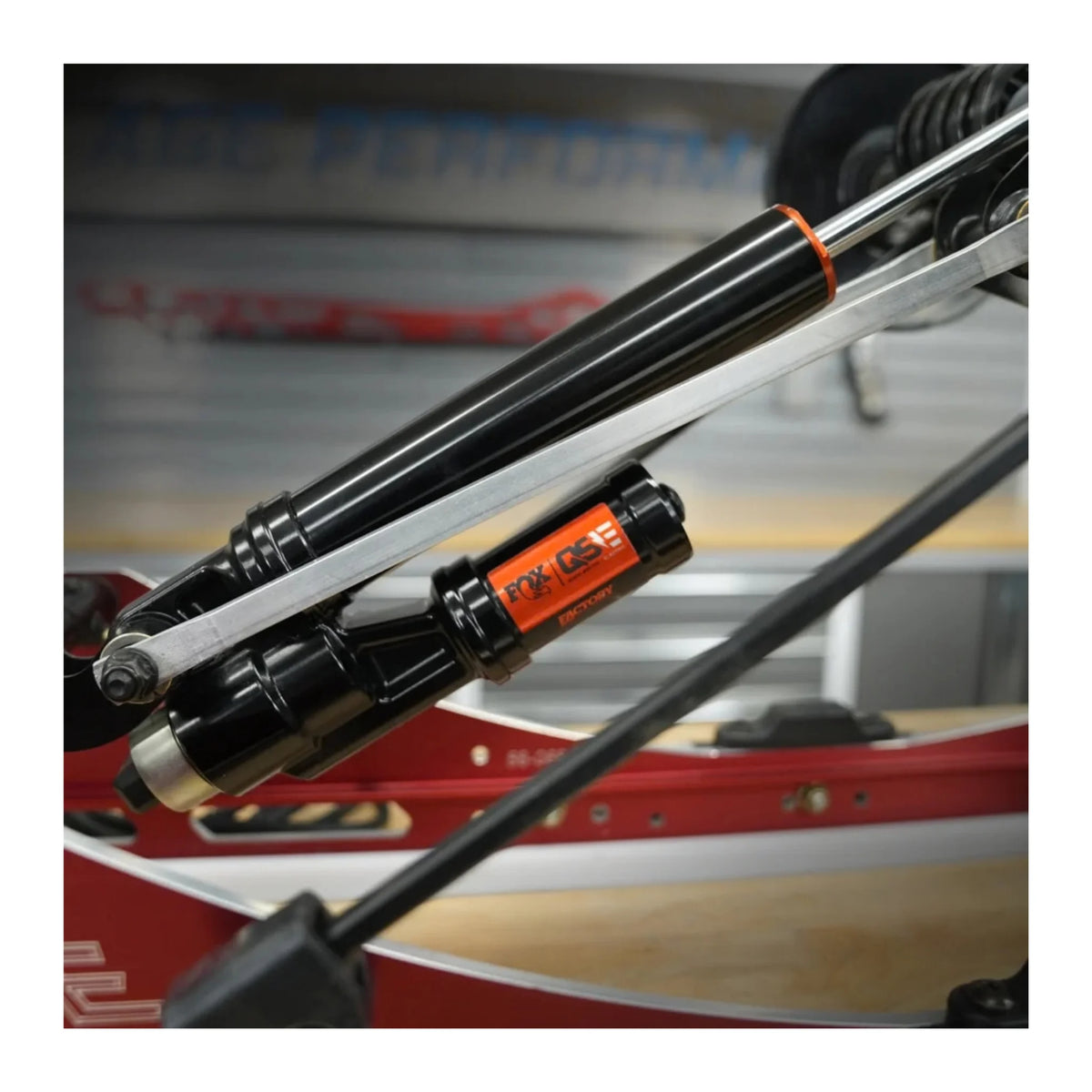

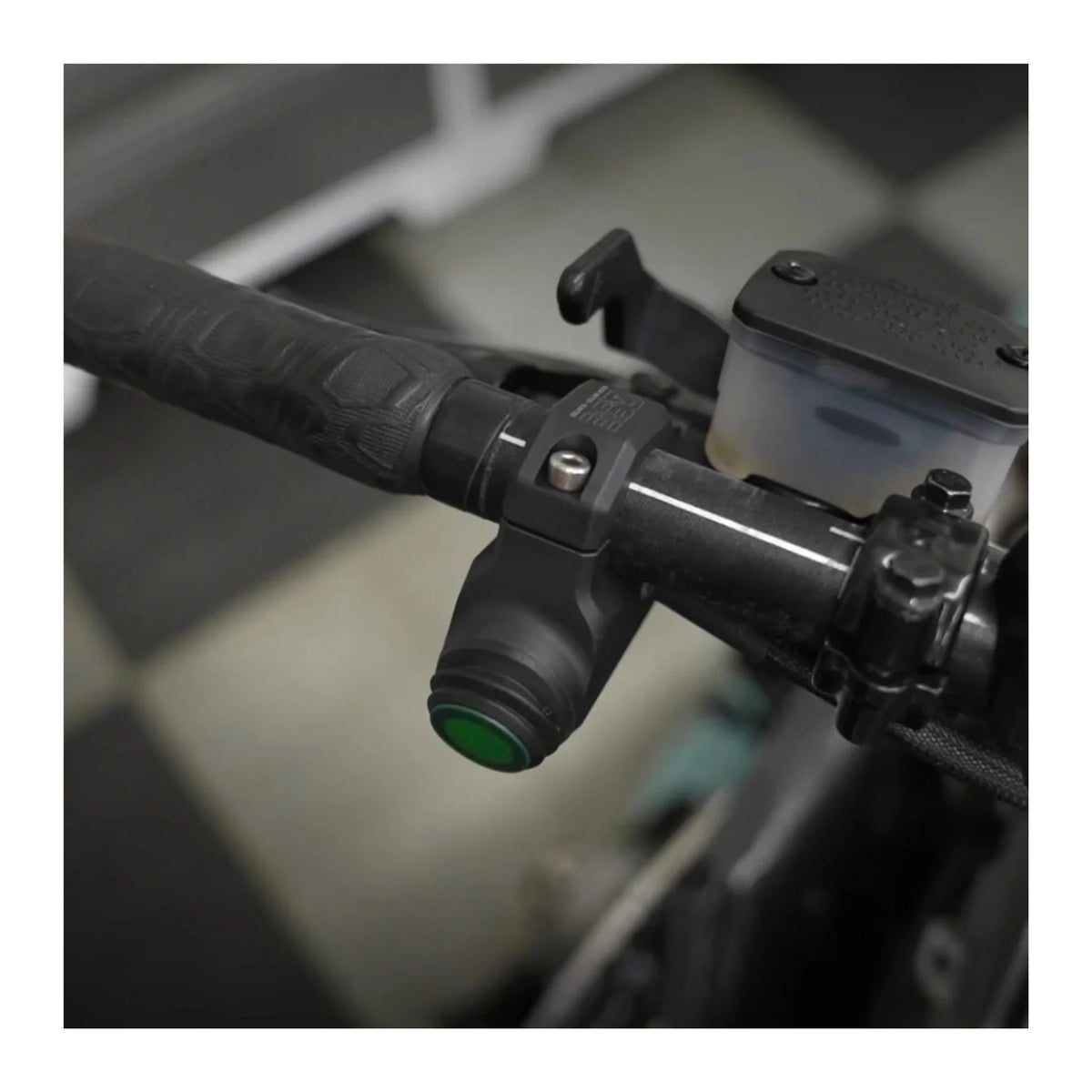

1. FOX "Lockout" is the industries only rear track shock featuring full "Lockout" technology to control your snowmobiles transfer and ski lift. Now available in the QSE variant, a single wire controls the rear track shock and a button mounted on the handlebar allows you to actuate the "Lockout" position while stationary or underway. When the "Lockout" is engaged you'll see more forward momentum for climbing and deep snow conditions to get up on top of the snow. This is ideal for having the best of both worlds...turn "Lockout" off and enjoy normal riding, plush ride, and a playful snowmobile. Note, when "Lockout" is OFF it's similar to the position-1 soft on a QS3.

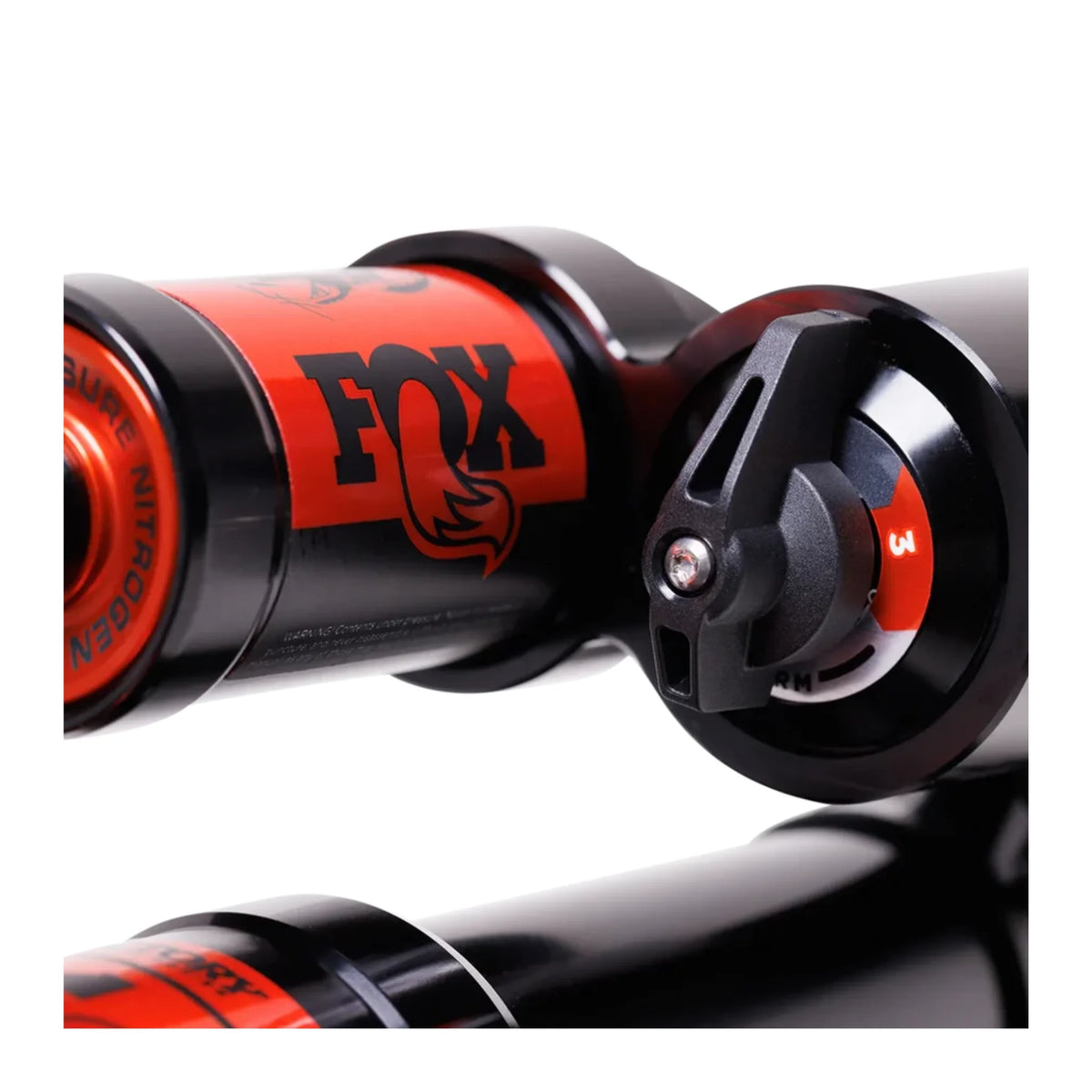

2. QS3 front track shock on the QSE kit is a manual knob that controls the compression with a 3-position clicker (soft, medium, hard). The large knob on the front track shock is easy to adjust with clearly labeled 3-positions that you can actually feel and see what position you are in. Easy to adjust with gloves on!
3. "Rifle Bore Grooves" are incorporated into the main ride zone of the shock (top 70%) for a superior plush ride by allowing fluid to bypass the piston. Then the (bottom 30%) of the shock these "Rifle Bore Grooves" are eliminated to increase bottoming resistance.
4. Lightweight! This current generation of FOX suspension is the lightest version all while outperforming the competition. From the design of the shock to materials used, every component was thoughtfully considered with the weight in mind.

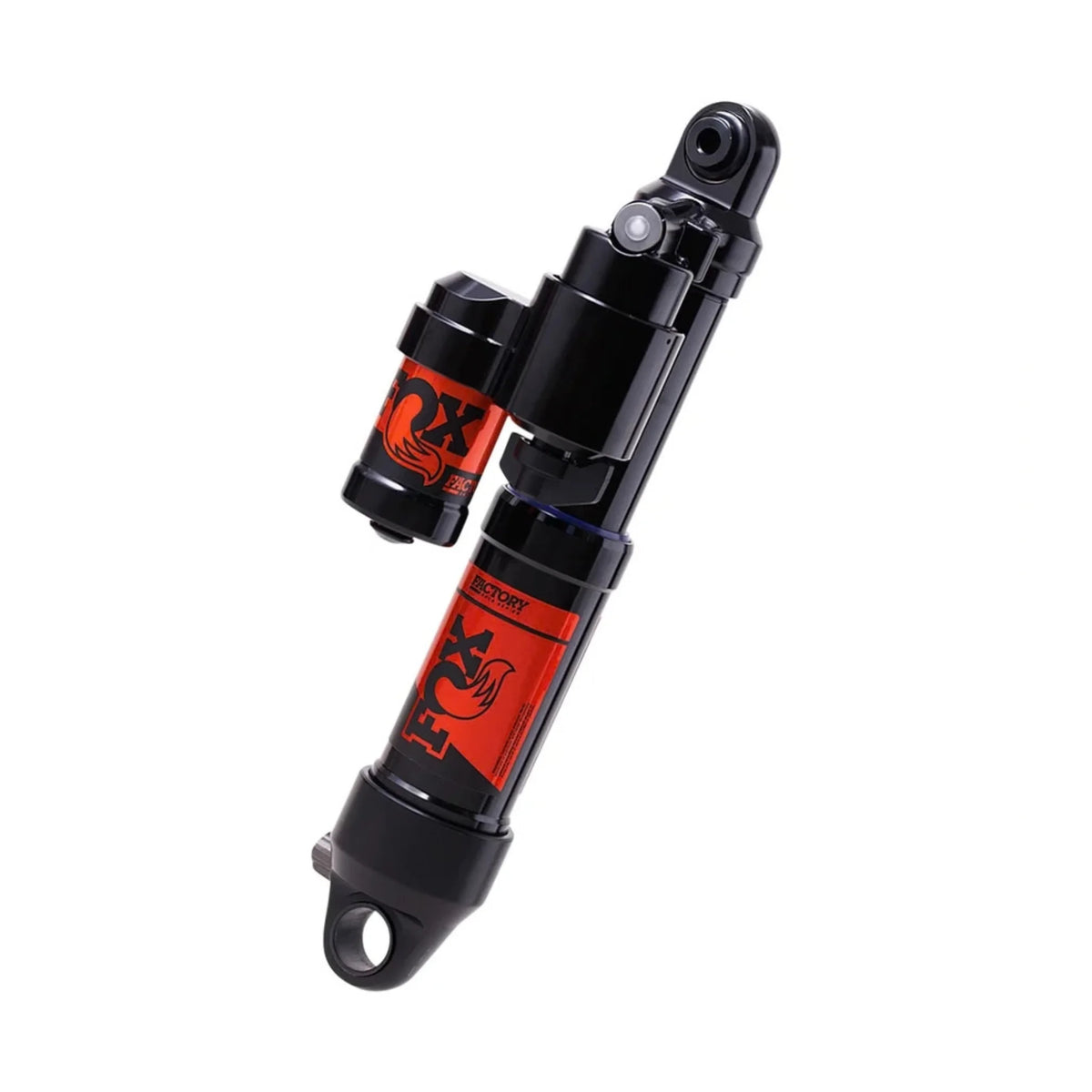

5. FLOAT adjustability allows you to dial in your suspension even further. Air down for plushness or increase pressure for big hits or heavier gear and rider weight. FLOAT shocks also come with an air pump to set air pressure to included settings based on rider weight and riding style so you can set and forget.

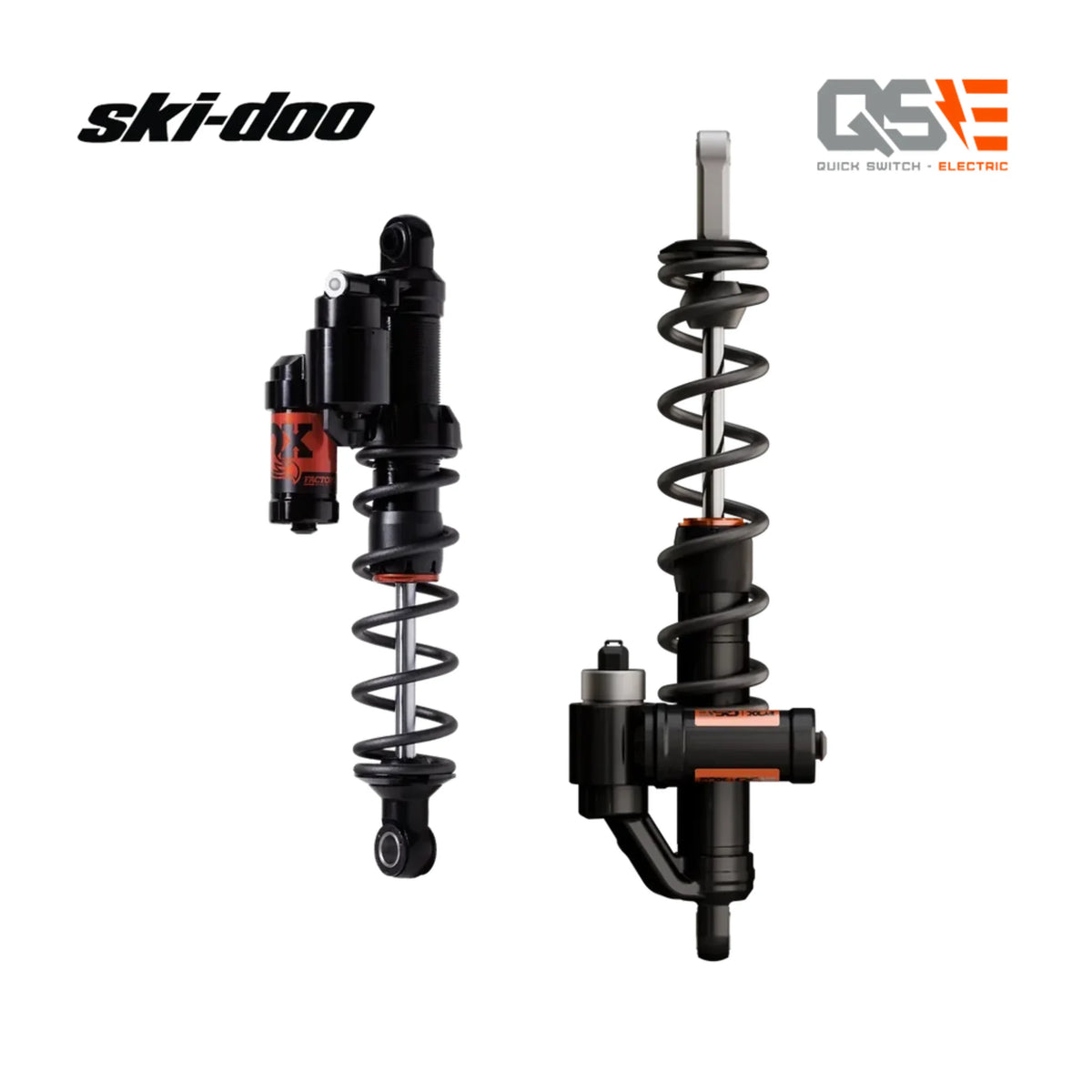

6. COIL simplicity...has a simple to use plastic spring collar to adjust your spring preload. Why plastic? It's much easier to spin plastic on the shock body and the spring tension keep pressure on the collar to prevent movement.
7. "Big Bore Basevalve" located on the front track shock is separate from the external reservoir. This controls fluid flow within the shock. It makes the shock feel more progressive throughout the stroke to consistently adapts to different conditions based on how fast or slow the shock is traveling through the stroke.

8. EVOL chamber on select FLOAT shocks make for an incredibly progressive feel. FLOAT shocks naturally ramp up in spring rate as they compress and when combined with the separate EVOL chamber it will have additional bottom out resistance. This means a plush compliant ride over the bumps and ruts while soaking up the biggest jumps and drops with even more bottoming resistance.

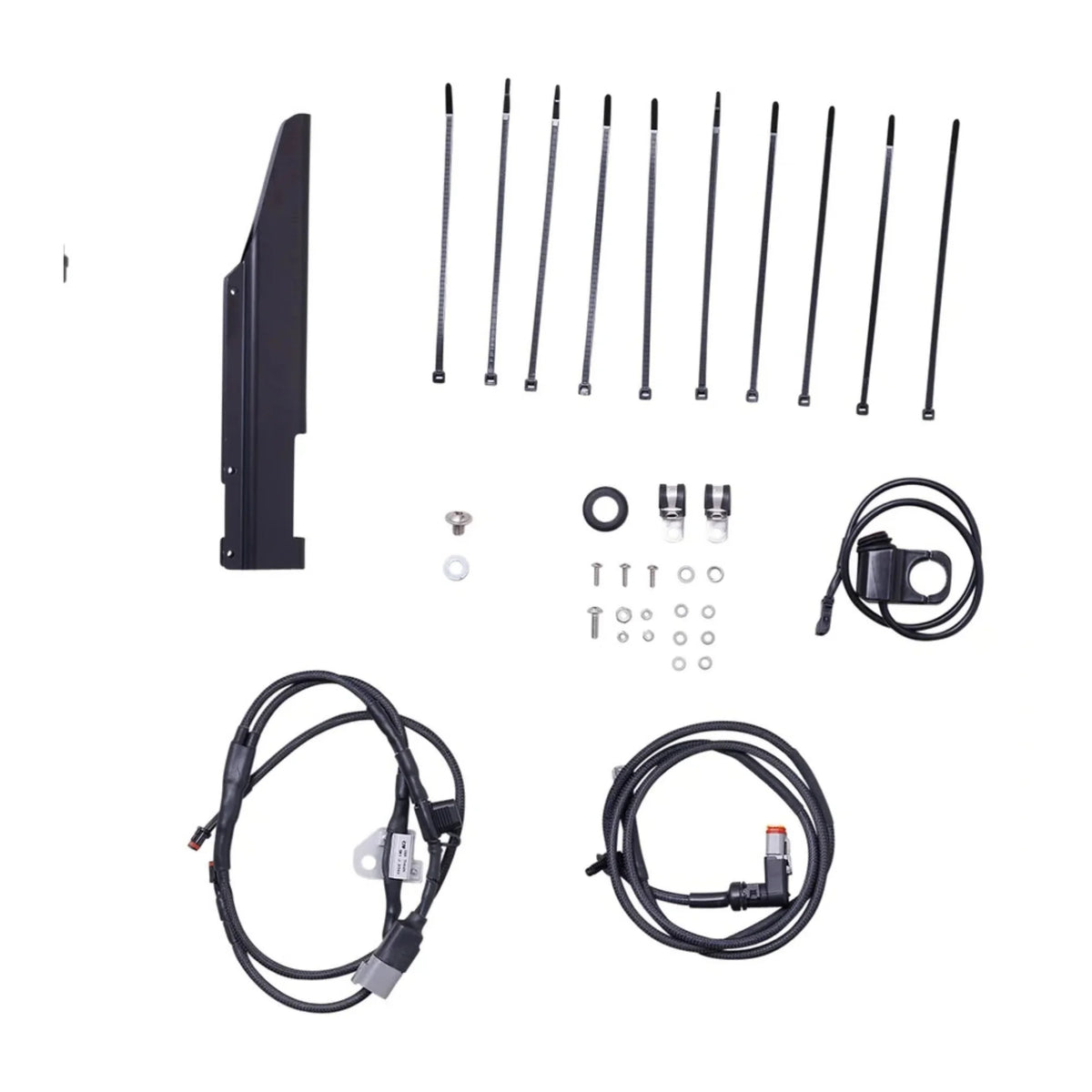

9. Easy to install! One wire between the handlebar and shock means less time installing and more time riding. A true plug-and-play system using the OEM accessory plug.
10. Ready to ride...Open the box and install or make adjustments with

NOTE: These skid shocks are specific to the new Gen5 Summit skid and are not backwards compatible with the Gen4 Summit skid.

OVERVIEW:

Whether beginner or advanced, all kits from FOX allow you to maximize your snowmobile experience, ride with confidence and come off the mountain feeling less fatigued. The shocks are easy to install with included instructions, YouTube video guidance and/or superior customer support from our team here at IceAge Performance.
